Various loads up to 300 kg

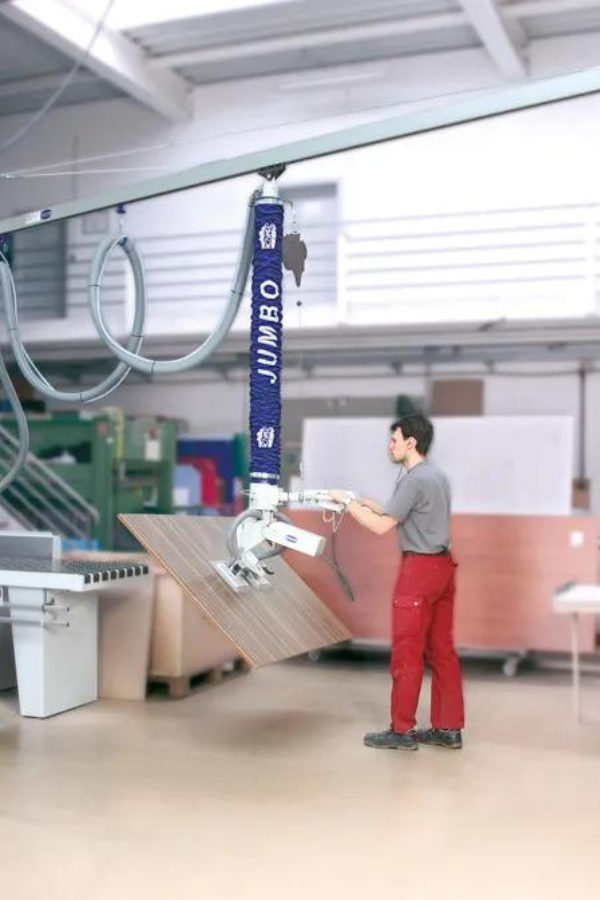

The rotating handle, similar to that of a motorcycle, allows for gentle and precise maneuvering of heavy and large loads such as wooden panels, cardboard boxes, and solar modules. The adjustable length of the handlebar ensures a consistently sufficient safety distance between the user and the load.
Video(s)
More video on our Youtube's channel
Product benefits
Performance :
- This system allows for quick and frequent lifting and moving of flat pieces weighing up to 300 kg.
- It facilitates delicate and precise handling of pieces of various sizes, such as cardboard boxes, wooden panels, or solar modules, within the company's internal logistics processes.
- It is efficient for loading and unloading CNC machining machines.
- Thanks to the optional radio remote control, it allows for energy savings of up to 40%.
- Thanks to the optional pneumatic tilting unit, it allows for tilting pieces weighing up to 120 kg at 90°.
Ergonomics :
- It provides responsive and precise handling thanks to an ergonomic control with a controllable rotating handle.
- It helps increase employee motivation and productivity by reducing work-related musculoskeletal disorders.
- Thanks to its modular design and a wide range of grippers and accessories, it meets individual needs.
Maintenance and Warranty :
- It comes with a 2-year warranty, excluding wear parts.
Technical data
|
Capacity (kg) |
Piece format* min/max (mm) |
Lifting speed (m/min) |
Maximum lifting height (mm) |
Height** (mm) |
Lifting tube Ø (mm) |
|
35 |
300 x 200/3000 x 1000 |
60 |
1700/2100 |
2850/3400 |
120 |
|
45 |
140 |
||||
|
65 |
160 |
||||
|
85 |
178 |
||||
|
110 |
203 |
||||
|
140 |
230 |
||||
|
200 |
250 |
||||
|
300 |
305 |
* Also depends on the chosen suction cup.
** Suction cup height is not included.
