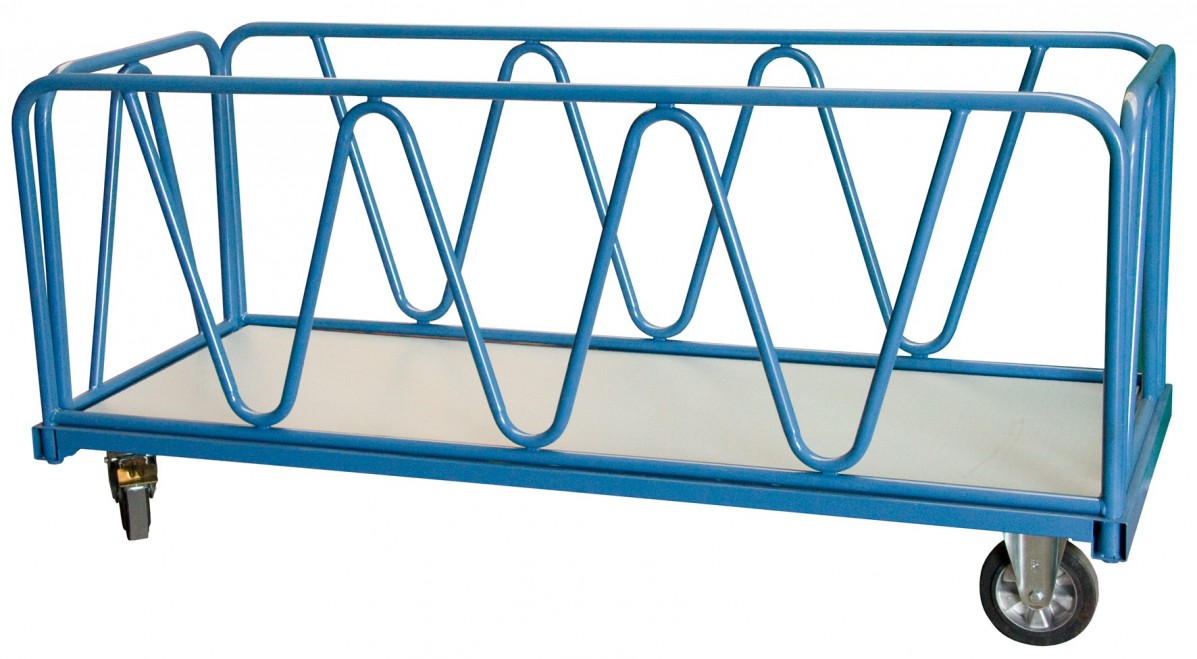

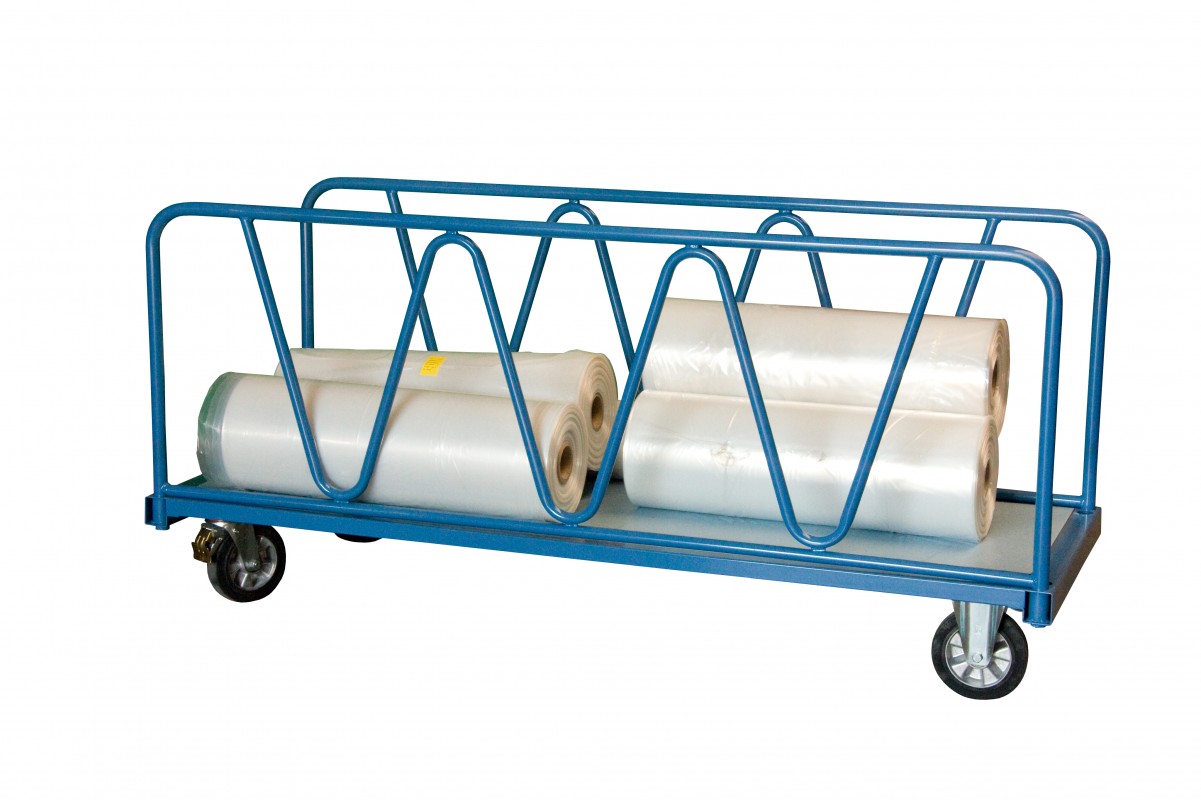

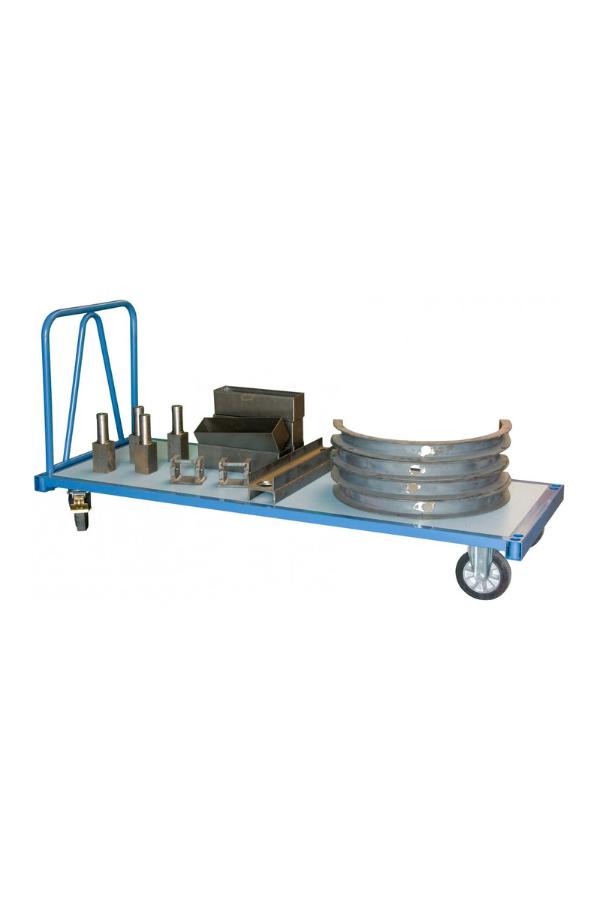

Modular Long Load Carriers 1200 kg

These are carts designed for intensive industrial use.

Product benefits

  • Reinforced chassis along its entire length.
  • 19mm thick, non-slip and rot-resistant wooden platform.
  • Backrests and side panels with a useful height of 700mm, which can be independently arranged according to needs with strong sleeves.
  • Wheels conforming to EN 1757 standard, consisting of two fixed and two swivel wheels with brakes mounted on aluminum bodies, ensuring excellent rolling quality.
  • Wheels can be positioned in a rectangle or diamond shape for good straight-line stability or 360° rotation in place.

Technical data

Side Panels and Backrests

Platform Dimensions (mm)

Overall Dimensions (mm)

Wheel Arrangement

Wheel Diameter (mm)

Tire Type

Weight (kg)



Platform Only



1600 × 800



1700 × 900 × 250

Rectangle























200























CC



46

Diamond



2000 × 800



2100 × 900 × 250

Rectangle



57

Diamond





1 Backrest



1600 × 800



1700 × 900 × 975

Rectangle



53

Diamond



2000 × 800



2100 × 900 × 975

Rectangle



64

Diamond





2 Backrests



1600 × 800



1700 × 900 × 975

Rectangle



60

Diamond



2000 × 800



2100 × 900 × 975

Rectangle



71

Diamond





2 Side Panels



1600 × 800



1700 × 900 × 975

Rectangle



64

Diamond



2000 × 800



2100 × 900 × 975

Rectangle



80

Diamond



2 Backrests

+

2 Side Panels



1600 × 800



1700 × 900 × 975

Rectangle



84

Diamond



2000 × 800



2100 × 900 × 975

Rectangle



100

Diamond

See the technical table
