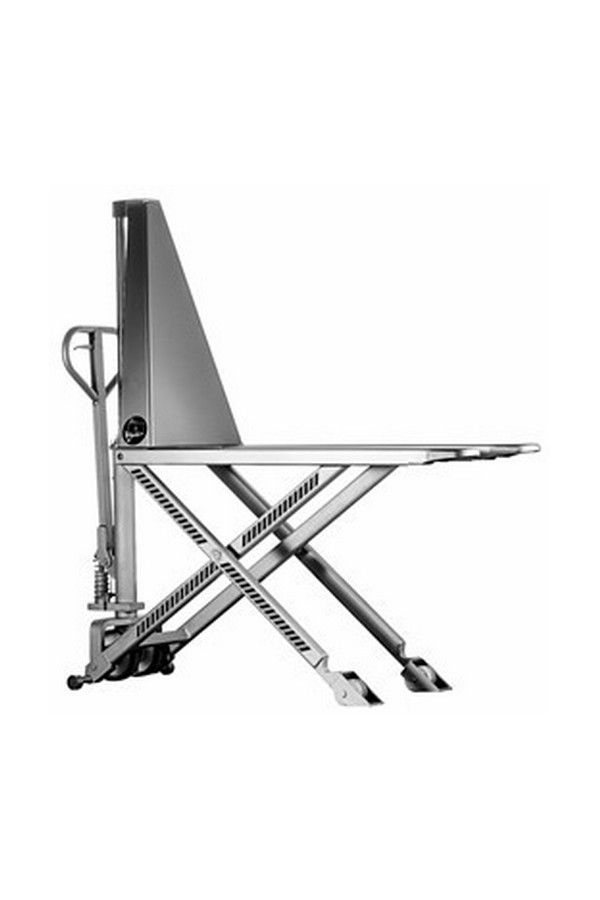

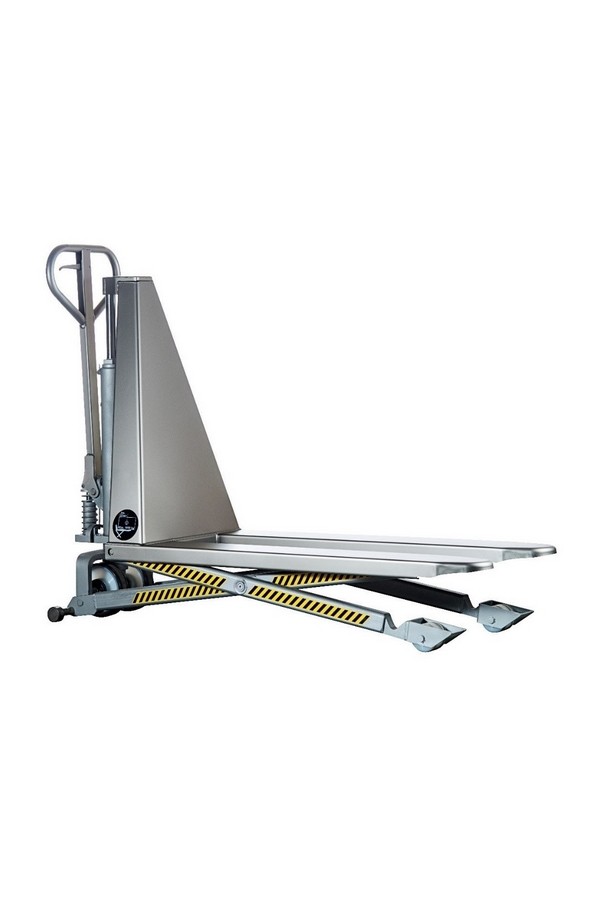

Electric high lift pallet truck 100% stainless steel 304 - 1000 kg
Specially designed for extremely wet and corrosive environments.
Product benefits
Frame and pump made of ultra-resistant 304 stainless steel, with a matt micro-beaded finish. Stainless steel 316 available on request.
This small and handy high lift pallet truck is a practical way of moving and raising pallets to a predetermined position.
The lift is controlled electrically by a button on the tiller and manually by a lever.
Can also be raised manually in case of battery failure.
Equipped with an emergency stop with key switch.
Load level indicator visible and accessible by coloured diodes.
Hydraulic cylinder with 1 piston to avoid multiple leaks.
Covered fork tips to prevent splashing.
Equipped with shoes that lock the unit to the ground once the load is up.
Two side stabilisers at the rear for maximum safety at 400mm lift and above, which are fully supported on the ground and prevent the unit from rolling.
Integrated electronic loader.
Delivered assembled, with user manual and CE certificate in French.
100% EUROPEAN PRODUCTION
2 year warranty (excluding worn parts)
Technical data
Force : 1000 Kg
Rear wheel diameter : 180 mm
Rear wheel type : PU/Nylon tape
Front wheel diam : 82 mm
Front wheel type : Nylon
Load capacity : 1000 mm
Distance from centre of f : 600 mm
Fork height in max position : 800 mm
Fork height in low position: 88 mm
Total length: 1655 mm
Total width: 560 mm
Tiller height in straight position: 1230 mm
Height of carriage: 938 mm
Fork dimensions: 33 x 160 x 1200 mm
Distance between tiller and fork face: 455 mm
Radius rotation angle: 1540 mm
Lift speed loaded/unloaded: 0.05/0.08 m/s
Lowering speed : Manual progressive
Electric motor: 12 V/0.8 KW
Battery Voltage, nominal capacity, capacity: 12V/6A/50Ah/5h
Weight Battery: 20 kg
Weight with battery: 155 kg
See the technical table
